The system increases levels of safety for drivers and other motorists, while minimising the risk of costly damage to the vehicle rig. The system works for trailers, centre axle trailers, and dollies.
The system alerts the driver via audio signals in the cab when there is a risk of jackknifing. This enables the driver to rectify the situation and regain control. The audio signal is triggered at an angle of 40 degrees and increases in frequency the closer the rig is to the jackknife angle. Once the maximum angular displacement has been reached, the audio signal switches to a constant tone. The angle figure is determined either directly when installing the components of the system or afterwards at the customer. The jackknife warning is only activated when reversing.
The guidance function when connecting means that the driver is provided with guidance in the cabin via voice control to reach the correct position. When the truck is reversed and approaches the drawbar, the system notifies the user via the speaker that the guidance is active, which occurs at a distance of two metres from the coupling. A voice then provides information as the driver reverses on what corrections are required to the truck (right, left, up or down) in order to get into the correct position for coupling.
The components included in the system are:
2 DSMs (Drawbar Sensing Module) that calculate the drawbar position.
6 reflectors that are attached to the drawbar, 3 on either side.
1 tube of glue Sikaflex 291i for the application of the reflectors.
1 cabling for connection of DSMs to VBG’s electrical architecture.
1 cable connected to the BCM (below the dashboard) to add a braking signal to the system.
1 speaker for voice guidence and audio signals.
1 magnet used during system setting procedure.

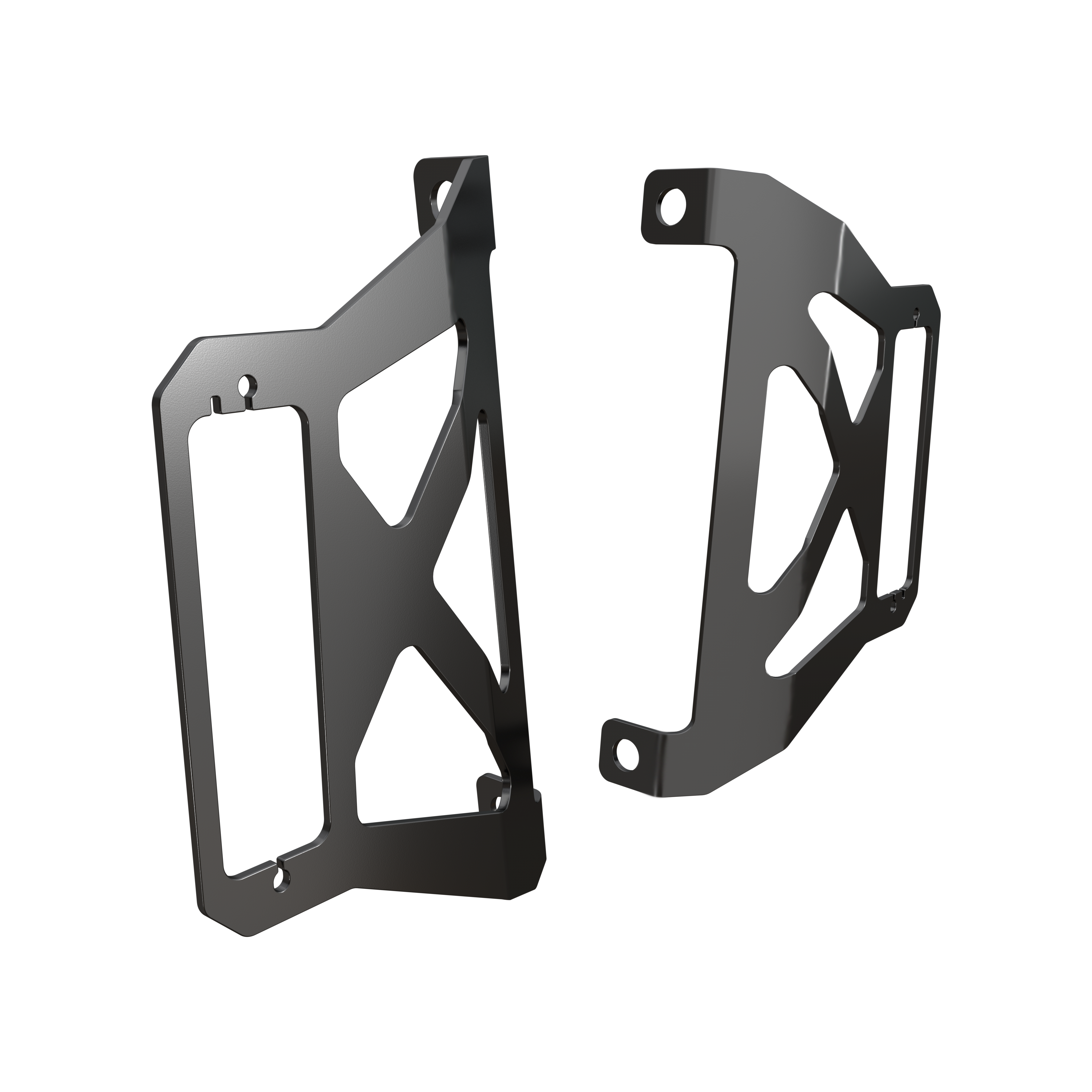

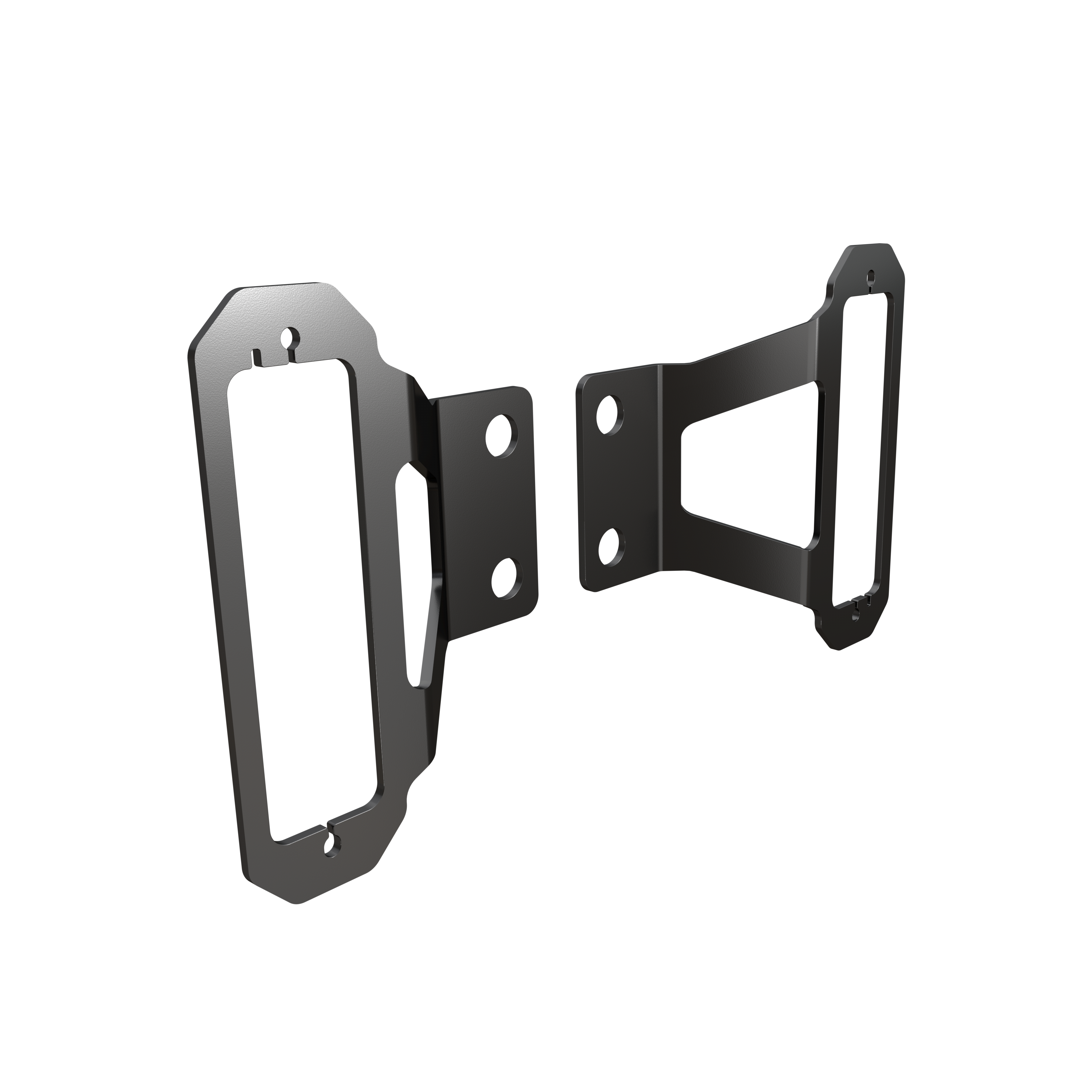

NOTE! Brackets for attaching DSMs are selected separately as these are adapted according to endplate type. See the product list.
