Conversion kit PA, VBG 575V-3, 590VR-3

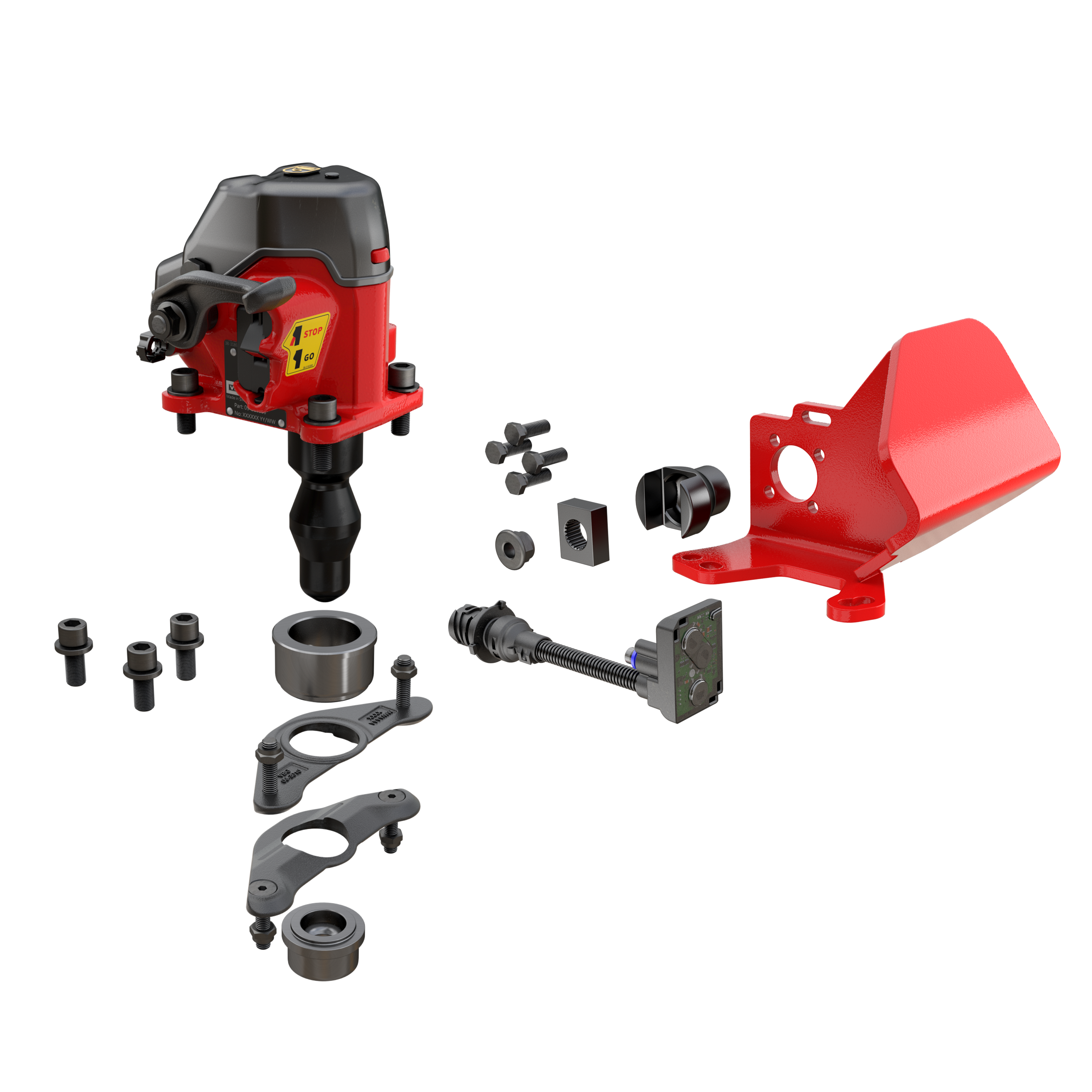

VBG std mek 575V-3_590VR-3_5310D-3 - 09-324700.png

Conversion kit PA, VBG 575V-3, 590VR-3
Part No. 09-324700

Contact us
By upgrading your existing coupling, it benefits from the improved features and reliability of the new generation. To upgrade a manual coupling, all you have to do is change the mechanism, while power-assisted couplings must be adapted to make use of existing indication kits and power actuator (PA models).

The upgrade kit includes everything you need.

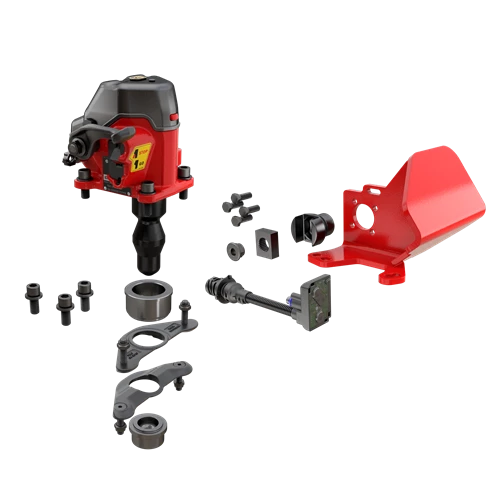

PA coupling upgrade: Improved mechanism + CSM sensor for signalling open/closed coupling + protective bracket suited to existing rotary devices + bushings, wear plates etc. found in the new generation.

Note! Due to a change in dimensions, the bushings must also be replaced to allow mounting of the replacement mechanism.

Technical data

Specifications

Weight 15.1 kg

Servicing film

Here you can see how you use VBG service tools to service and fit/remove the bushings.

Fits to

VBG 575V-2 - Trailer coupling

VBG 575V-2 - Trailer coupling

This product has been discontinued from our range. Here you will find product information such as technical data, documentation, manuals and any spare parts for your product. This coupling is for centre-axle trailers, dollies and trailers with an ISO Ø 50 mm drawbar eye. A totally unique design using spring compression elements where the material is so rigid that the drawbar eye is guided in during coupling, while also being sufficiently elastic to allow angular displacement of 90 degrees with a fixed coupling mouth. The well-proven attachment package, with its large bearing surfaces, has been adapted for large vertical forces.
VBG 590VR-2 - Trailer coupling

VBG 590VR-2 - Trailer coupling

This product has been discontinued from our range. Here you will find product information such as technical data, documentation, manuals and any spare parts for your product. This coupling is for centre-axle trailers, dollies and trailers with an ISO Ø 50 mm drawbar eye. A totally unique design using spring compression elements where the material is so rigid that the drawbar eye is guided in during coupling, while also being sufficiently elastic to allow angular displacement of 90 degrees with a fixed coupling mouth. The well-proven attachment package, with its large bearing surfaces, has been adapted for large vertical forces. VBG 590VR-2, with an encapsulated attachment package, is the choice for those who drive under tough road conditions, e.g. forestry, building and construction transport.
