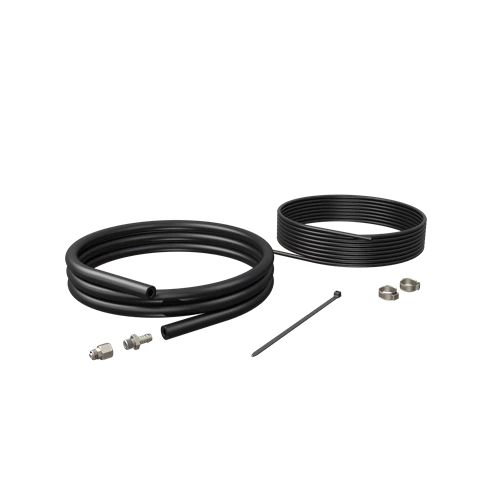

Tube kit for AM operating system

Tube kit for AM operating system
Part No. 09-185700

Technical data

Weight

0.7 kg

Mounting Instruction	Format	Size
VBG Mounting instruction - 38-253300.pdf	pdf	3,3 MB
VBG Mounting instruction - 38-253200.pdf	pdf	2.9 MB
VBG Mounting instruction - 38-253400.pdf	pdf	3.2 MB

You will find all documents under Support. Here is also documentation on maintenance of your product.

Actuators for VBG couplings with single-acting air mechanism (AM) with 1,5m rubber tube and 4m pneumatic hose.

Actuators for VBG couplings with single-acting air mechanism (AM) with 1,5m rubber tube and 4m pneumatic hose.

Actuators for VBG couplings with single-acting air mechanism (AM).

Actuators for VBG couplings with single-acting air mechanism (AM) with 2,7m rubber tube.
