Conversion kit AM, VBG 5190D-3
Conversion kit AM, VBG 5190D-3
Part No. 09-326400
By upgrading your existing coupling, it benefits from the improved features and reliability of the new generation. To upgrade a manual coupling, all you have to do is change the mechanism, while power-assisted couplings must be adapted to make use of existing indication kits.
The upgrade kit includes everything you need.

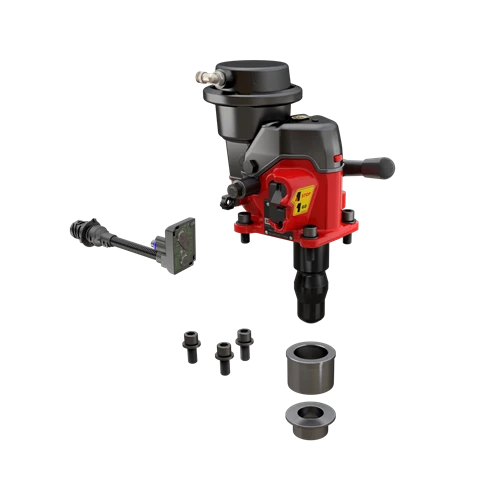

Improved mechanism + CSM sensor for signalling open/closed coupling + bushings etc. found in the new generation.
Note! Due to a change in dimensions, the bushings must also be replaced to allow mounting of the replacement mechanism.
The upgrade kit includes everything you need.
Improved mechanism + CSM sensor for signalling open/closed coupling + bushings etc. found in the new generation.
Note! Due to a change in dimensions, the bushings must also be replaced to allow mounting of the replacement mechanism.
Technical data
Specifications
| Weight | 16.7 kg |
Servicing film
Here you can see how you use VBG service tools to service and fit/remove the bushings.
Documentation / Manuals
| Mounting Instruction | Format | Size |
|---|---|---|
| VBG Mounting instruction - Mechanism VBG 5190D-3 AM - 38-338300.pdf | 5,7 MB | |
| VBG Mounting instruction - PA conversion kit - 38-340400.pdf | 4,2 MB |
