Mechanism VBG 5190D-3

Mechanism VBG 5190D-3
Part No. 09-322200

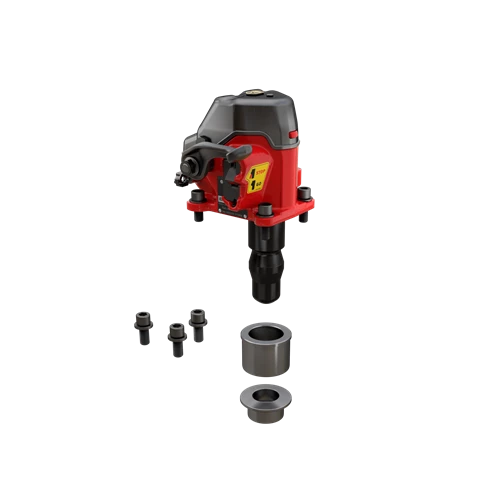

Complete replacement mechanism for the fastest possible part replacement. In addition to the mechanism, the kit also contains upper and lower jaw bushings, and mounting screws. Replacing all these parts at the same time saves you time and essentially gives you a fully-overhauled and fully-certified coupling, which both ensures functionality and extends service life.

Upgrade your coupling!

By upgrading your existing coupling, it benefits from the improved features and reliability of the new generation. To upgrade a manual coupling, all you have to do is change the mechanism, while power-assisted couplings must be adapted to make use of existing indication kits and rotary devices (PA models).

The upgrade kit includes everything you need.

Manual coupling upgrade: Improved mechanism + bushings, wear plates etc. found in the new generation

AM coupling upgrade: Improved mechanism + CSM sensor for signalling open/closed coupling + bushings, wear plates etc. found in the new generation

PA coupling upgrade: Improved mechanism + CSM sensor for signalling open/closed coupling + protective bracket suited to existing rotary devices + bushings, wear plates etc. found in the new generation.

Technical data

Specifications

Weight

10.6 kg

Servicing film

Here you can see how you use VBG service tools to service and fit/remove the bushings.

VBG 5190D, 5200D-3

Option / Accessories

Accessories

	Part no.
VBG Service tool	39-030000
Foot pump	39-031700

Documentation / Manuals

Mounting Instruction	Format	Size
VBG Mounting instruction - Mechanism VBG 5190D-3 - 38-338200.pdf	pdf	8.7 MB

Are you missing a certain document?

You will find all documents under Support. Here is also documentation on maintenance of your product.

Fits to

VBG 5190D - Trailer coupling

This product has been discontinued from our range. Here you will find product information such as technical data, documentation, manuals and any spare parts for your product. A comfort coupling for trailers with an articulated drawbar and ISO Ø 50 mm drawbar eye. VBG 5190D has increased bolt/bushing supporting surfaces and is ideal for use in combination with high total weights and demanding environments. The robust design and small number of components ensure low running costs and reliable operation. The well-proven attachment package affords you first-rate driving comfort.
