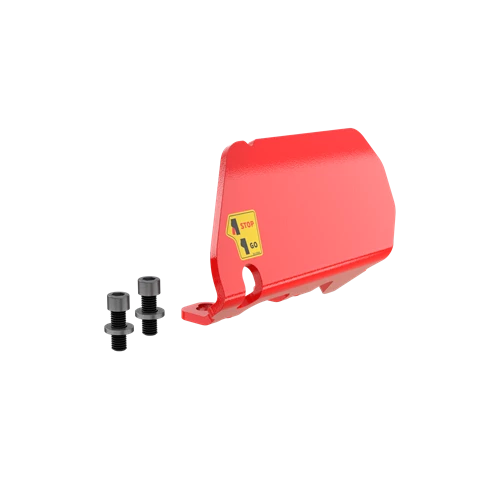

Protection bracket VBG 750V-3, 795V-3, 795VR-3, 575V-3, 590VR-3, 5200D-3 PA


Protection bracket VBG 750V-3, 795V-3, 795VR-3, 575V-3, 590VR-3, 5200D-3 PA
Part No. 09-327300

Contact us

Technical data

Specifications

Weight 3 kg

Fits to

VBG power actuator kit G2

VBG power actuator kit G2

With a power actuator, the coupling opens and closes quickly, hassle-free and with the highest degree of safety for the driver. The second generation of power actuators (G2) is based on proven VBG technology and connects directly to the mechanism without connecting to the protective bracket. The robust, maintenance-free aluminium design provides hassle-free operation, and the compact design means it fits easily in most truck bodies. This power actuator kit fits VBG couplings 795VR-3, 795V-3, 750V-3, 7310D-3, 575V-3, 590VR-3, 5200D-3 and 5310D-3 and is operated with VBG Valve Box.
VBG 575V-3 - Trailer coupling

VBG 575V-3 - Trailer coupling

This coupling is for centre-axle trailers, dollies and trailers with an ISO Ø 50 mm drawbar eye. A totally unique design using spring compression elements where the material is so rigid that the drawbar eye is guided in during coupling, while also being sufficiently elastic to allow angular displacement of 90 degrees with a fixed coupling mouth. The well-proven attachment package, with its large bearing surfaces, has been adapted for large vertical forces.

VBG 590VR-3 - Trailer coupling

VBG 590VR-3 - Trailer coupling

This coupling is for centre-axle trailers, dollies and trailers with an ISO Ø 50 mm drawbar eye. A totally unique design using spring compression elements where the material is so rigid that the drawbar eye is guided in during coupling, while also being sufficiently elastic to allow angular displacement of 90 degrees with a fixed coupling mouth. The well-proven attachment package, with its large bearing surfaces, has been adapted for large vertical forces. VBG 590VR-3, with an encapsulated attachment package, is the choice for those who drive under tough road conditions, e.g. forestry, building and construction transport.
VBG 5310D-3 - Trailer coupling

VBG 5310D-3 - Trailer coupling

A coupling for trailers with articulated drawbar and ISO Ø 50 mm drawbar eye. VBG 5310D-3 is a robust coupling for heavy transports. Because the coupling has a strong and stable attachment with ten bolts mounted in the drawbeam, it can absorb very large forces.
VBG 795VR-3 - Trailer coupling

VBG 795VR-3 - Trailer coupling

This coupling is intended for heavy centre-axle trailers, twin steering axle trailers and dollies fitted with drawbar eyes in accordance with standard SS 550100-2 D57. Thanks to the practical and user-friendly design, you get a reliable and durable coupling with low operating costs. The well-proven attachment package, with its large bearing surfaces, has been adapted for large vertical forces. The difference between the VBG 795VR-3 and 795V-3 is the encapsulated attachment package, which is the choice for those who drive in tougher road conditions, such as forestry, building or construction transport, and have a need for high performance values.
VBG 795V-3 - Trailer coupling

VBG 795V-3 - Trailer coupling

This coupling is intended for heavy centre-axle trailers, twin steering axle trailers and dollies fitted with drawbar eyes in accordance with standard SS 550100-2 D57. The wise choice for those who operate heavy trailers, twin-steering axle trailers or dollies, require for high performance, and drive under more favourable road conditions. Thanks to the practical and user-friendly design, you get a reliable and durable coupling with low operating costs. The well-proven attachment package, with its large bearing surfaces, has been adapted for large vertical forces.
VBG 750V-3 - Trailer coupling

VBG 750V-3 - Trailer coupling

This coupling is designed for centre-axle trailers, dollies and trailers equipped with drawbar eyes in accordance with standard SS 550100-2 D57. A good choice for those who operate dump trailers, have lower requirements for performance, and drive on more favourable road conditions. Thanks to the practical and user-friendly design, you get a reliable and durable coupling with low operating costs. The well-proven attachment package, with its large bearing surfaces, has been designed for vertical forces.
VBG 7310D-3 - Trailer coupling

VBG 7310D-3 - Trailer coupling

A coupling for trailers with articulated drawbar fitted with drawbar eyes in accordance with standard SS 550100-2 D57. VBG 7310D-3 is a robust coupling for heavy transports. Because the coupling has a strong and stable attachment with ten bolts mounted in the drawbeam, it can absorb very large forces.
VBG 5200D-3 - Trailer coupling

VBG 5200D-3 - Trailer coupling

A comfort coupling for trailers with an articulated drawbar and ISO Ø 50 mm drawbar eye. VBG 5200D-3 has increased bolt/bushing supporting surfaces and is ideal for use in combination with high total weights and demanding environments. The robust design and small number of components ensure low running costs and reliable operation. The well-proven attachment package affords you first-rate driving comfort.
