Mechanism VBG 5190D

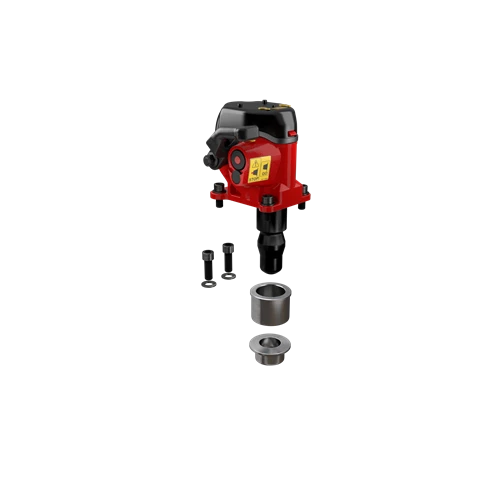

VBG 5190D 09-129400 exploded1.png

Mechanism VBG 5190D
Part No. 09-129400

Complete replacement mechanism for the fastest possible part replacement. In addition to the mechanism, the kit also contains upper and lower jaw bushings, and mounting screws. Replacing all these parts at the same time saves you time and essentially gives you a fully-overhauled and fully-certified coupling, which both ensures functionality and extends service life.

MECHANISM UPGRADE KITS

By upgrading your existing mechanism, you benefit from the improved functionality and reliability of the new generation.

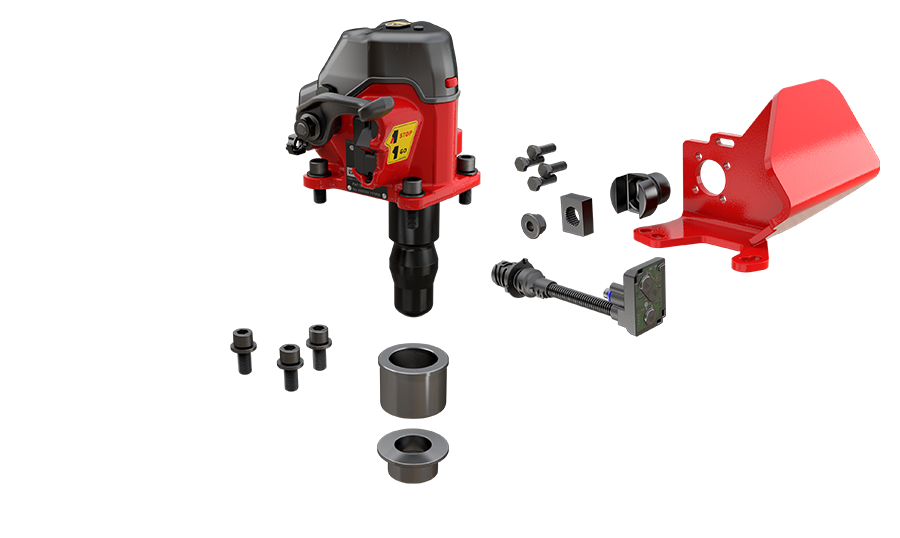

mekanismer_contentblock VBG std mek 5190D-3 - 09-325300
Go to spare part

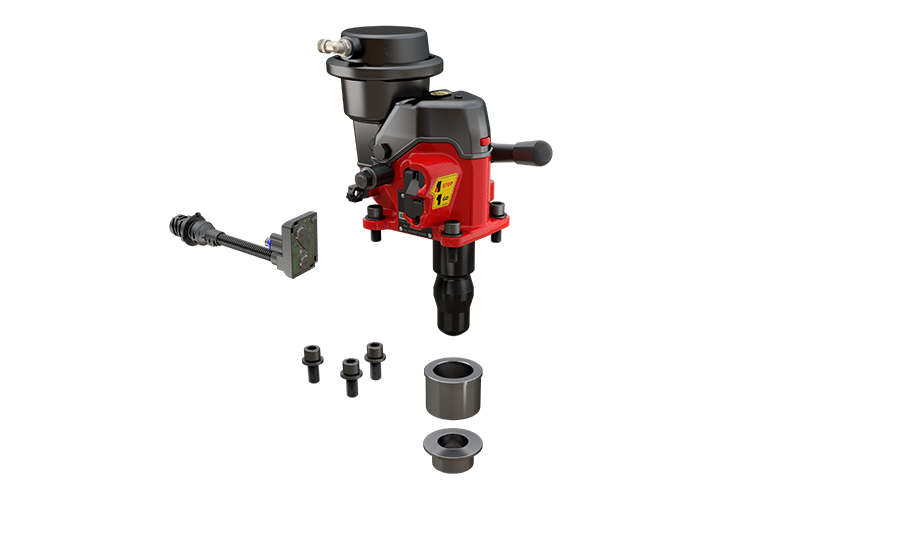

mekanismer_contentblockVBG AM mek 5190D-3 - 09-326400.
Go to spare part

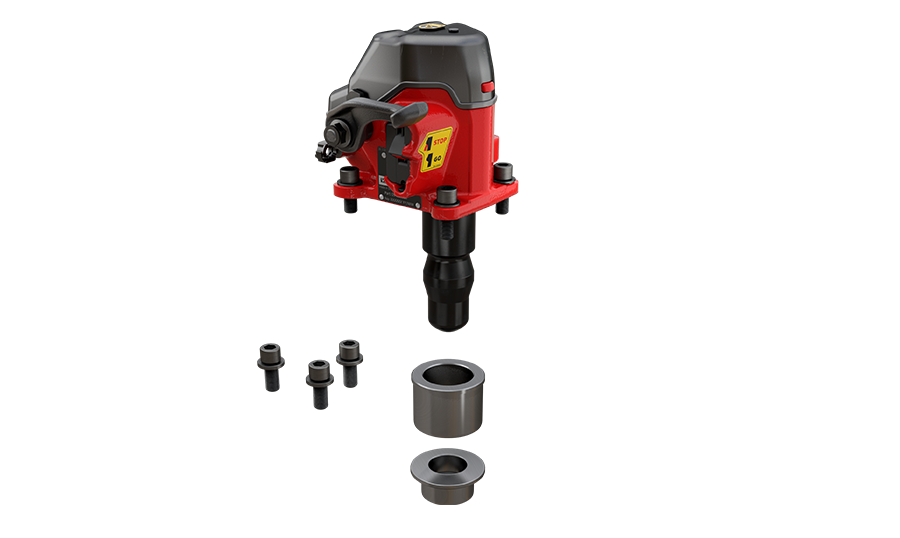

mekanismer_contentblock VBG 5190D-3_mekanism_09-322200

Mechanism upgrade – manual coupling

Go to spare part

IT PAYS TO CHANGE THE ENTIRE MECHANISM

When a single part fails, other interacting parts are also likely to be worn or negatively affected. If only a single part is replaced, the next part is likely to fail as well before long, and you'll soon have to return to the shop.



By replacing the entire mechanism along with all the wear parts, you not only avoid more shop time with associated disassembly and reassembly of the mechanism, but you also get the latest versions of all original parts. It is simply the surest way to increase service life and reduce downtime.



You can save even more time by using the VBG service tool. With this tool, you can change bushings quickly and easily without having to heat or knock out the old ones.

Servicing film

Here you can see how you use VBG service tools to service and fit/remove the bushings.

Technical data

Specifications

Weight 11.85 kg
