Workhorse for heavy towing

VBG 795V-3 - Trailer coupling

VBG 795V-3 Trailer coupling Power actuator Guiding funnel Short/Short
Part No. 09-310100

This coupling is intended for heavy centre-axle trailers, twin steering axle trailers and dollies fitted with drawbar eyes in accordance with standard SS 550100-2 D57. The wise choice for those who operate heavy trailers, twin-steering axle trailers or dollies, require for high performance, and drive under more favourable road conditions. Thanks to the practical and user-friendly design, you get a reliable and durable coupling with low operating costs. The well-proven attachment package, with its large bearing surfaces, has been adapted for large vertical forces.

Different operation

VBG795V-3 PA

Power actuator – for maximum safety and comfort

A coupling with the VBG Power Actuator (PA) is opened and closed by means of a double-acting, pneumatically-controlled torsion device operated by a manual valve, with no need to reach underneath vehicle to access the coupling. This ergonomic solution is the most comfortable, and significantly simplifies coupling and decoupling. It saves you time and reduces the risk of injury.

VBG795V-3 AM

Air-assisted opening makes things a bit easier

With the Air Mechanism (AM), you get a convenient, space-saving all-in-one solution. The mechanism has a single-acting diaphragm cylinder with a function for opening. A powerful spring is used for closing.

VBG795V-3 std L-L


The coupling is opened by hand and closes by spring force. This version does not require any additional components.

You can always supplement manual coupling with a power actuator (PA unit).

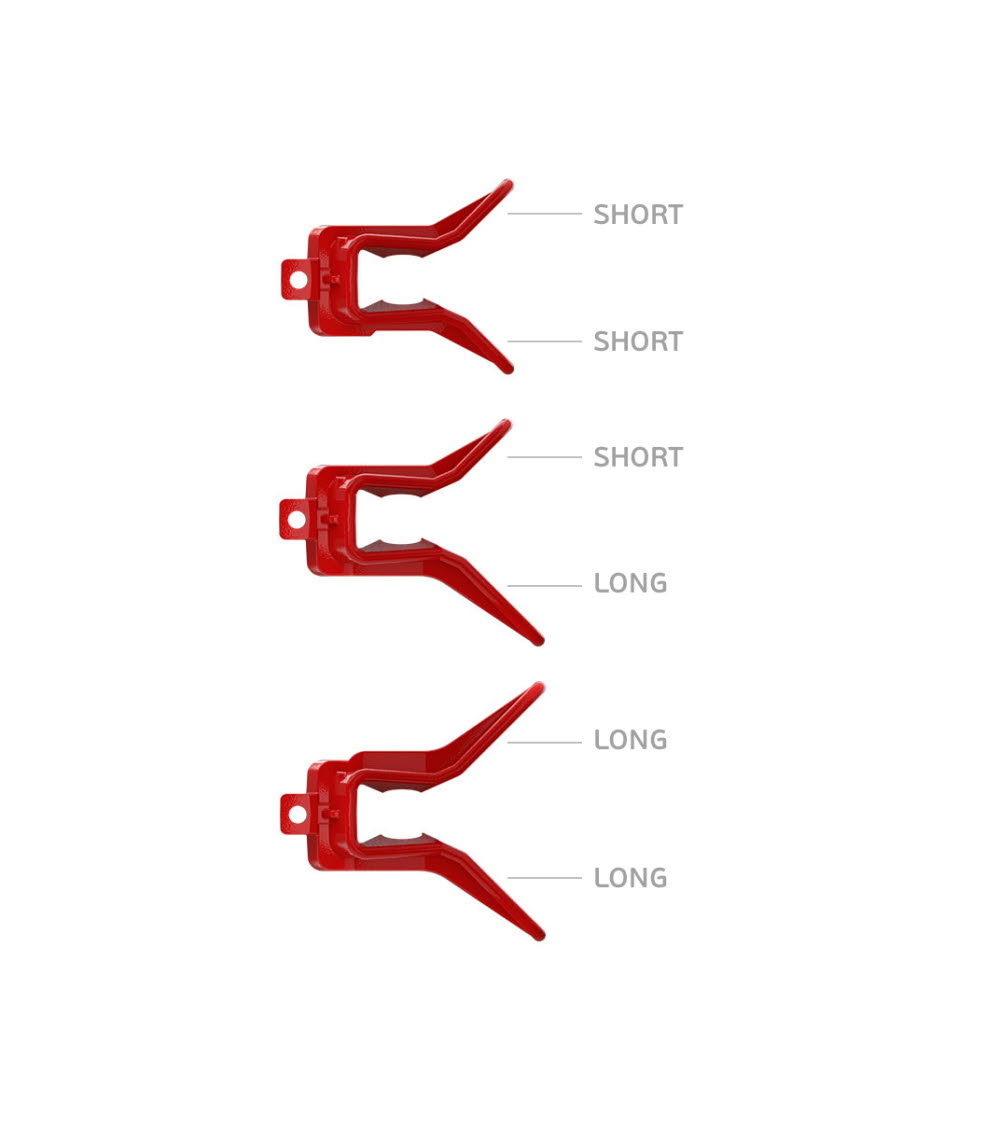

Guiding funnel EN

Select a coupling mouth based on your needs

Three versions of the coupling mouth are available, which means the coupling can be modified to meet your needs to an even greater extent. A coupling mouth with long lips, or extended underlip, simplifies coupling and decoupling and enables the driver to work more safely and efficiently.

Short lips make coupling in tight spaces easier.

An extended underlip makes it easier to couple heavy loads, where the drawbar eye ends up below the coupling.

Extended lips provide additional support for the drawbar eye and improved safety when coupling.

Why should I choose this?

Fleet manager

This coupling gives you maximum flexibility through the ability to tow most types of trailers. The lowest total cost of ownership thanks to the high quality that provides long service life and carefree ownership. The reliable design minimises unexpected downtime and costly delays. The modular design, with interchangeable mechanisms, allows any repairs to be performed swiftly with few installation steps, which saves workshop time and ensures safety.

Tip: If you supplement with VBG MechMatic, lubrication and cleaning are performed completely automatically. This saves time and trouble for the driver and reduces service and maintenance costs.

Long service life
Reliable design
Increased driver efficiency
Low total cost of ownership

Tech manager

The coupling can be factory-fitted to the drawbeam. If you supplement with endplates or other equipment, we deliver the system fully-loaded, which saves both time and work. In addition, it results in a fully quality-assured system.

Standardised attachment
Quick and easy mounting
Fill 1 Created with Sketch.
Can be supplied factory-fitted


This coupling makes your working day a little easier. The reliable design and high reliability reduce unexpected problems. The performance values make you both safer and more flexible, as you can connect to any trailer. Alternative lengths of coupling mouths simplify connection. The pneumatic servo makes connection and disconnection quick and comfortable with minimal physical stress. When necessary, you can quickly get help and spare parts from our nationwide service network.

Group Created with Sketch.
Increases your safety
Saves time

Forget about cleaning and lubrication!

VBG MechMatic is the smart accessory that both cleans and lubricates the coupling completely automatically. This saves time and reduces costs – and prolongs the service life of the coupling.

Go to VBG MechMatic
