Unique design with fixed coupling mouth for full angular displacement

VBG 575V-3 - Trailer coupling


Part No.

This coupling is for centre-axle trailers, dollies and trailers with an ISO Ø 50 mm drawbar eye. A totally unique design using spring compression elements where the material is so rigid that the drawbar eye is guided in during coupling, while also being sufficiently elastic to allow angular displacement of 90 degrees with a fixed coupling mouth. The well-proven attachment package, with its large bearing surfaces, has been adapted for large vertical forces.

Different operation

VBG575V-3PA

Power actuator – for maximum safety and comfort

A coupling with the VBG Power Actuator (PA) is opened and closed by means of a double-acting, pneumatically-controlled torsion device operated by a manual valve, with no need to reach underneath vehicle to access the coupling. This ergonomic solution is the most comfortable, and significantly simplifies coupling and decoupling. It saves you time and reduces the risk of injury.

575V-3 AM

Air-assisted opening makes things a bit easier

With the Air Mechanism (AM), you get a convenient, space-saving all-in-one solution. The mechanism has a single-acting diaphragm cylinder with a function for opening. A powerful spring is used for closing.

575V-3

Manual

The coupling is opened by hand and closes by spring force. This version does not require any additional components.

You can always supplement manual coupling with a power actuator (PA unit).

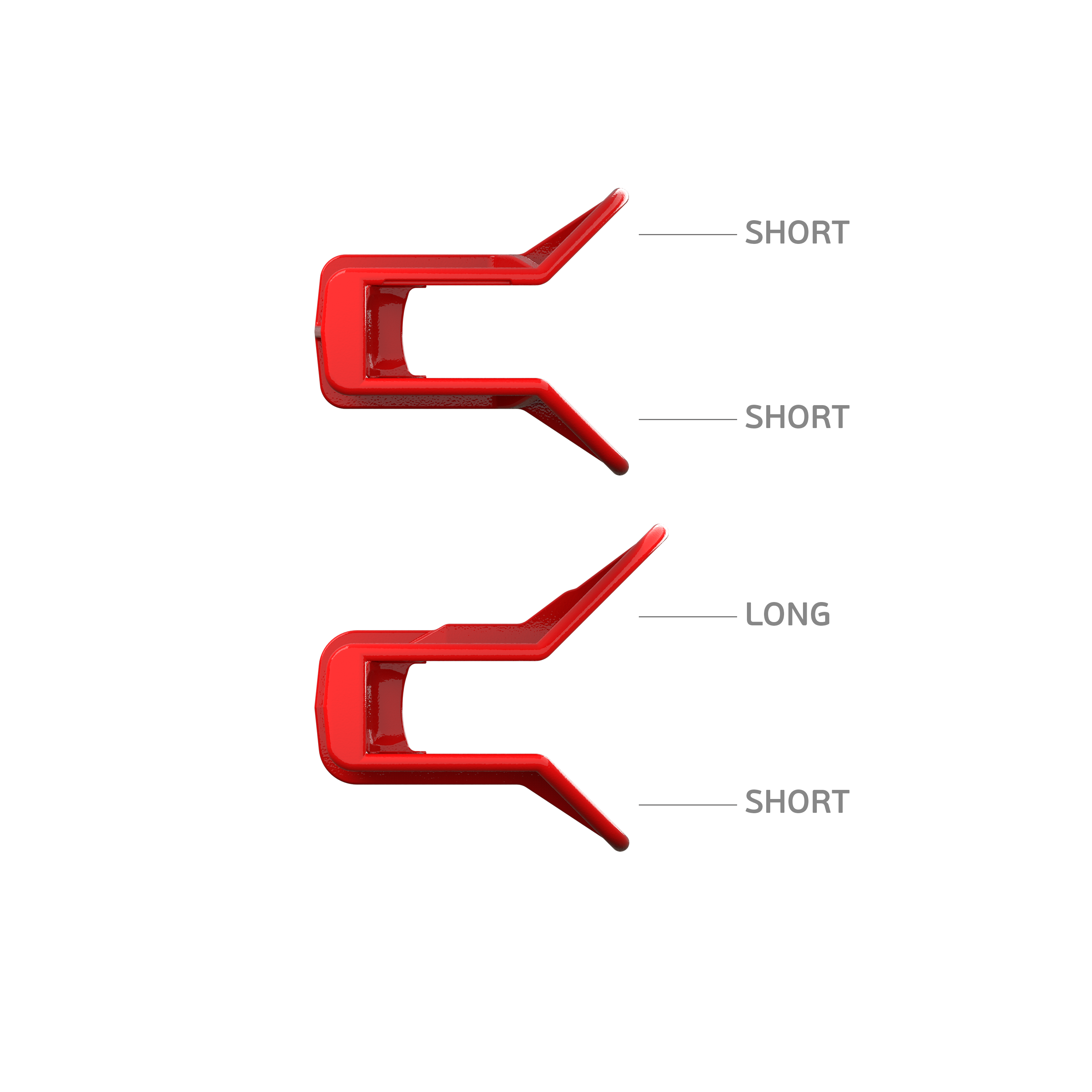

VBG Guding funnel 575

SELECT A COUPLING MOUTH BASED ON YOUR NEEDS

Two versions of the coupling mouth are available, which means the coupling can be modified to meet your needs to an even greater extent.



Short lips make coupling in tight spaces easier.



An extended upper lip facilitates connection and provides extra protection for your power actuator.

Why should I choose this?

Fleet manager

The VBG 575V-3 enhances the driver’s manoeuvrability and makes connection easier. The coupling can be opened and closed irrespective of the drawbar angle. The flexible compression elements provide a sturdy design as you avoid having a moving coupling mouth. With many connections and disconnections performed each day, this provides greater comfort, major time savings and safer shunting.

The superior VBG quality extends the long service life and offers more carefree ownership. The reliable design minimises unexpected downtime and costly delays. The modular design, with interchangeable mechanisms, allows any repairs to be performed swiftly with few installation steps, which saves workshop time and ensures safety.

Tip: If you supplement with VBG MechMatic, lubrication and cleaning are performed completely automatically. This saves time and trouble for the driver and reduces service and maintenance costs.

Long service life
Reliable design
Increased driver efficiency
Low total cost of ownership

Tech manager

The coupling can be factory-fitted to the drawbeam. If you supplement with endplates or other equipment, we deliver the system fully-loaded, which saves both time and work. In addition, it results in a fully quality-assured system.

Standardised attachment
Quick and easy mounting
Fill 1 Created with Sketch.
Can be supplied factory-fitted

Drivers

This coupling enhances your manoeuvrability and makes connection easier. The coupling can be opened and closed irrespective of the drawbar angle. If you make many connections and disconnections each day, this provides increased comfort, great time savings and safer shunting.

Tip: The VBG 575V-3 can also be equipped with a coupling mouth extender for even better control of the draw bar eye.

The reliable design and excellent access to assistance and spare parts from our nationwide service network minimise the risk of unexpected problems.

Group Created with Sketch.
Ergonomic
Increases your safety
Saves time
Mechmatic

Forget about cleaning and lubrication!

VBG MechMatic is the smart accessory that both cleans and lubricates the coupling completely automatically. This saves time and reduces costs – and prolongs the service life of the coupling.

Go to VBG MechMatic
